Subject: Carb Rebuild Parts Wanted

[Back] [Return to Top of Forum]

Joel W    Posted 05-30-2017 at 20:32:13 [URL] [DELETE]        [Reply] [Email]
  • Carb Rebuild Parts Wanted
  • Rebuilding a Marvel Schebler TSX33 Carb for my '39 9N and I'm looking for the felt strainer (PN: 9N-9694) and the Retainer Expansion (PN: 9N-9692). The Marvel Scheber PN's: are 179-35 & 95-40. Any help would be appreciated. Thanks

    Tim Daley(MI)    Posted 06-03-2017 at 09:01:41 [URL] [DELETE]        [Reply] [No Email]
  • Re: Carb Rebuild Parts Wanted
  • Joel-
    There are several M/S Carb rebuild kits available, some have most all of the parts required, some contain a new brass float, venturi, choke butterfly, and throttle plate too, but you need to get the complete kit, not the low-budget partial kit. The M/S TSX-33 Main Adjustment Screw is not made any longer so you must use the newer one made for the TSC-241 carb, which isn't a problem but you no longer will need the brass ratchet stop adjustment piece screwed to the body. It won't interfere with anything so you can leave it on. See Main jet screw and ratchet in top left of picture.

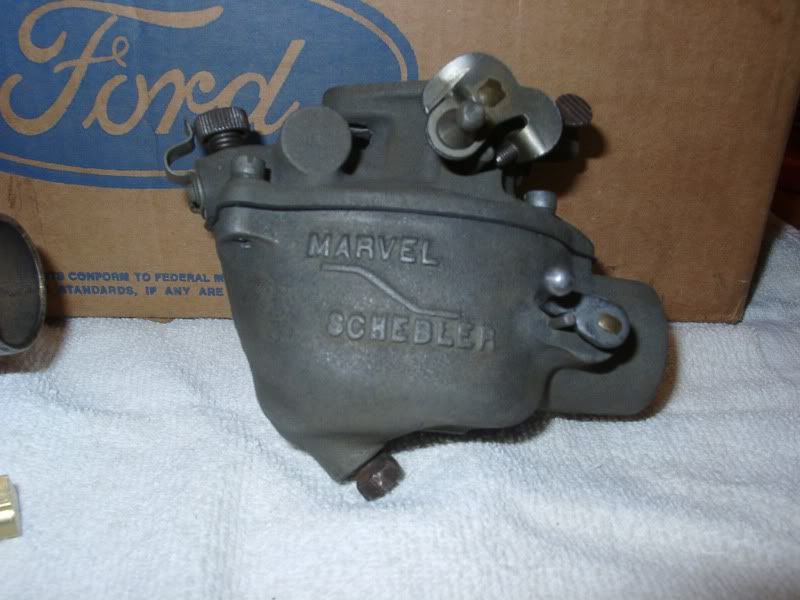

    MARVEL-SCHEBLER TSX-33 CARBURETOR, USED ON 1939-1949 FORD TRACTORS:

    Tim Daley(MI)
