Subject: Ford 501 Rear Attached Mower - dealer parts book

[Back] [Return to Top of Forum]

Ed Gooding (VA)    Posted 03-16-2005 at 11:22:58        [Reply] [Email]
  • Ford 501 Rear Attached Mower - dealer parts book
  • 24 pages from the dealer parts book on this popular Ford mower. The posts below are broken up in sections by related topic for those with slower connections.

    Please review our tutorial in our How-To's section on how to capture these images directly to your PC.

    Enjoy.........Ed
    '52 8N475798

    Jim Funk    Posted 07-15-2005 at 23:54:27        [Reply] [Email]
  • Re: Ford 501 Rear Attached Mower - dealer parts book
  • I need a operators manual for the Ford sickle bar mower 501 7' bar. I am having difficulty mounting it to my New Holland Tractor.

    Farmer Dan    Posted 08-08-2005 at 21:52:59        [Reply] [Email]
  • Re: Ford 501 Rear Attached Mower - dealer parts book
  • I found the 501 mower operators manual, parts manual and sales brocuer in .pdf format. I can email them if you wish but they are poor quality.

    Ed Gooding (VA)    Posted 07-16-2005 at 08:23:42        [Reply] [Email]
  • Re: Ford 501 Rear Attached Mower - dealer parts book
  • Jim, I'm afraid that I don't have the owner's manual for this mower. Coupla suggestions:

    Scan this forum for the owner's manual on the Dearborn 14-15/14-16 sickle bar mower and see if the info in that manual gives enough guidance to apply to yours.

    Visit the N-News Archives, and look for this manual - Ford “56” & “76” Rear Attach Mowers, Mod 14-92 & 14-93, A/O Instr. (17) They charge a copying and mailing cost recovery fee ($6.29 in this case) for a photo-copy. Click on their logo below to visit their website and order a copy:

    Hope this helps............Ed
    '52 8N475798

    Ed Gooding (VA)    Posted 03-16-2005 at 11:24:30        [Reply] [Email]

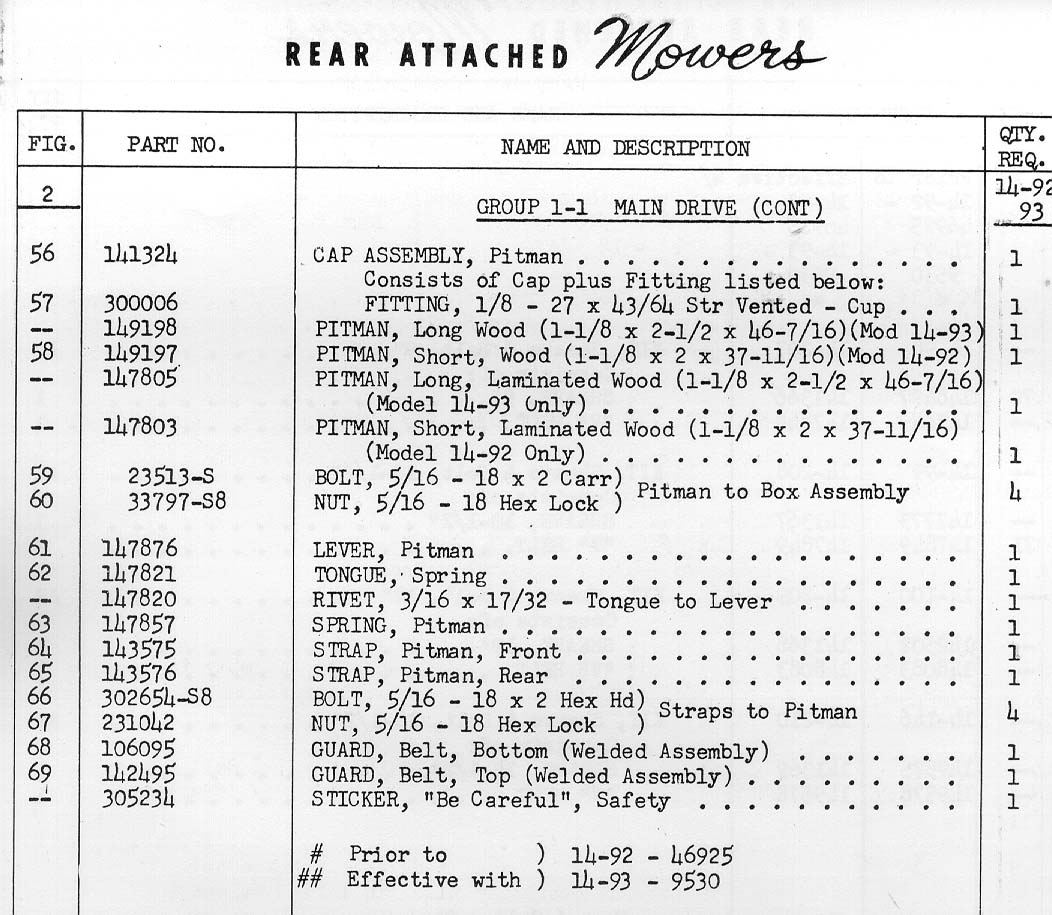

  • Model Index & Main Drive Info (5 pages)

  • G Miller    Posted 06-14-2005 at 14:56:07        [Reply] [Email]
  • Display of Re: Model Index & Main Drive Info (5 pages)
  • I only display a "picture placeholders" (a square with a red X) instead of the manual picture. Does anybody have a solution?

    Tyler (MD)    Posted 06-14-2005 at 18:48:32        [Reply] [Email]
  • Re: Display of Re: Model Index & Main Drive Info (5 pages)
  • G,

    Try these fixes at the link supplied below.

    Tyman

    Ed Gooding (VA)    Posted 06-14-2005 at 15:47:42        [Reply] [Email]
  • Re: Display of Re: Model Index & Main Drive Info (5 pages)
  • Try it again. I was able to see all five pages.

    Regards............Ed
    '52 8N475798

    G Miller    Posted 06-14-2005 at 16:22:19        [Reply] [Email]
  • Re: Display of Re: Model Index & Main Drive Info (5 pages)
  • Still does not display. A right click and Show Picture does not help. A Refresh does not help.
    I did not find any manuals on the Ford group to display.

    Ed Gooding (VA)    Posted 06-14-2005 at 16:45:33        [Reply] [Email]
  • Re: Display of Re: Model Index & Main Drive Info (5 pages)
  • It sounds like you are having some type of browser problem on your end. I can see all the scans with either Internet Explorer v6.0 or Firefox 1.04.

    What browser are you using?

    Regards............Ed
    '52 8N475798

    G Miller    Posted 06-14-2005 at 16:53:15        [Reply] [Email]
  • Re: Display of Re: Model Index & Main Drive Info (5 pages)
  • I am using Internet Explorer 6.0 with Windows 2000 Professional.

    Ed Gooding (VA)    Posted 06-15-2005 at 07:05:51        [Reply] [Email]
  • Re: Display of Re: Model Index & Main Drive Info (5 pages)
  • G, found this tech. bulletin at Uncle Bill's house that may answer this for you.

    Click here to visit the Microsoft tech. support site for a pertinent tech. bulletin

    Hope this helps............Ed
    '52 8N475798

    Ed Gooding (VA)    Posted 06-14-2005 at 18:31:43        [Reply] [Email]
  • Re: Display of Re: Model Index & Main Drive Info (5 pages)
  • I don't know what to tell you then. I just tried it again with that exact config. (IE 6.0 and Win2k Pro) and I can see the pages being displayed. I'll bring this to the attention of the club's webmaster. Perhaps he'll be able to help. In the meantime, I can email you the images you need. Let me know if that will work for you.

    Hang in there........Ed
    '52 8N475798

    Ed Gooding (VA)    Posted 03-16-2005 at 11:26:03        [Reply] [Email]

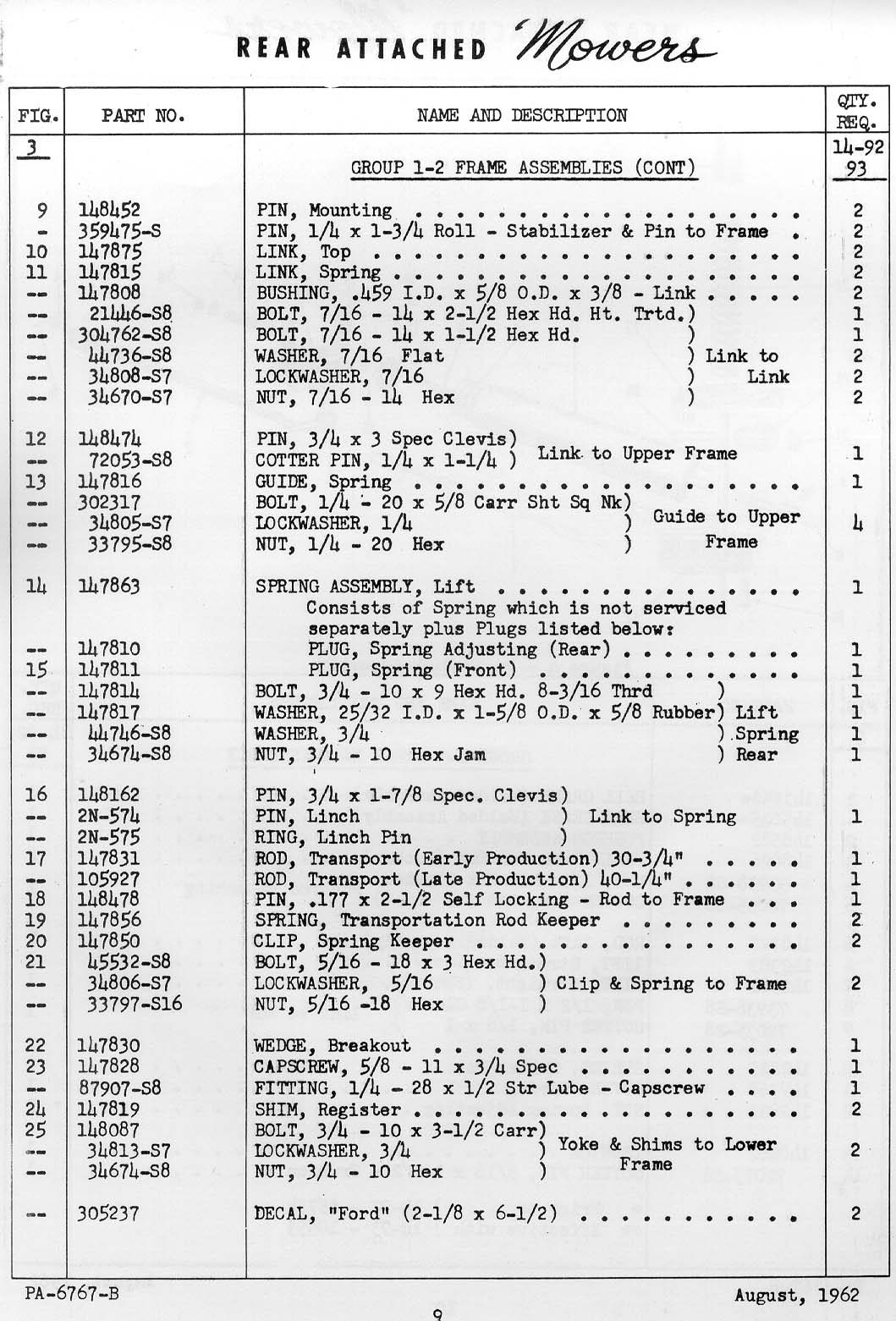

  • Sheave, Frame and Breakback assemblies (5 pages)

  • Ed Gooding (VA)    Posted 03-16-2005 at 11:27:47        [Reply] [Email]

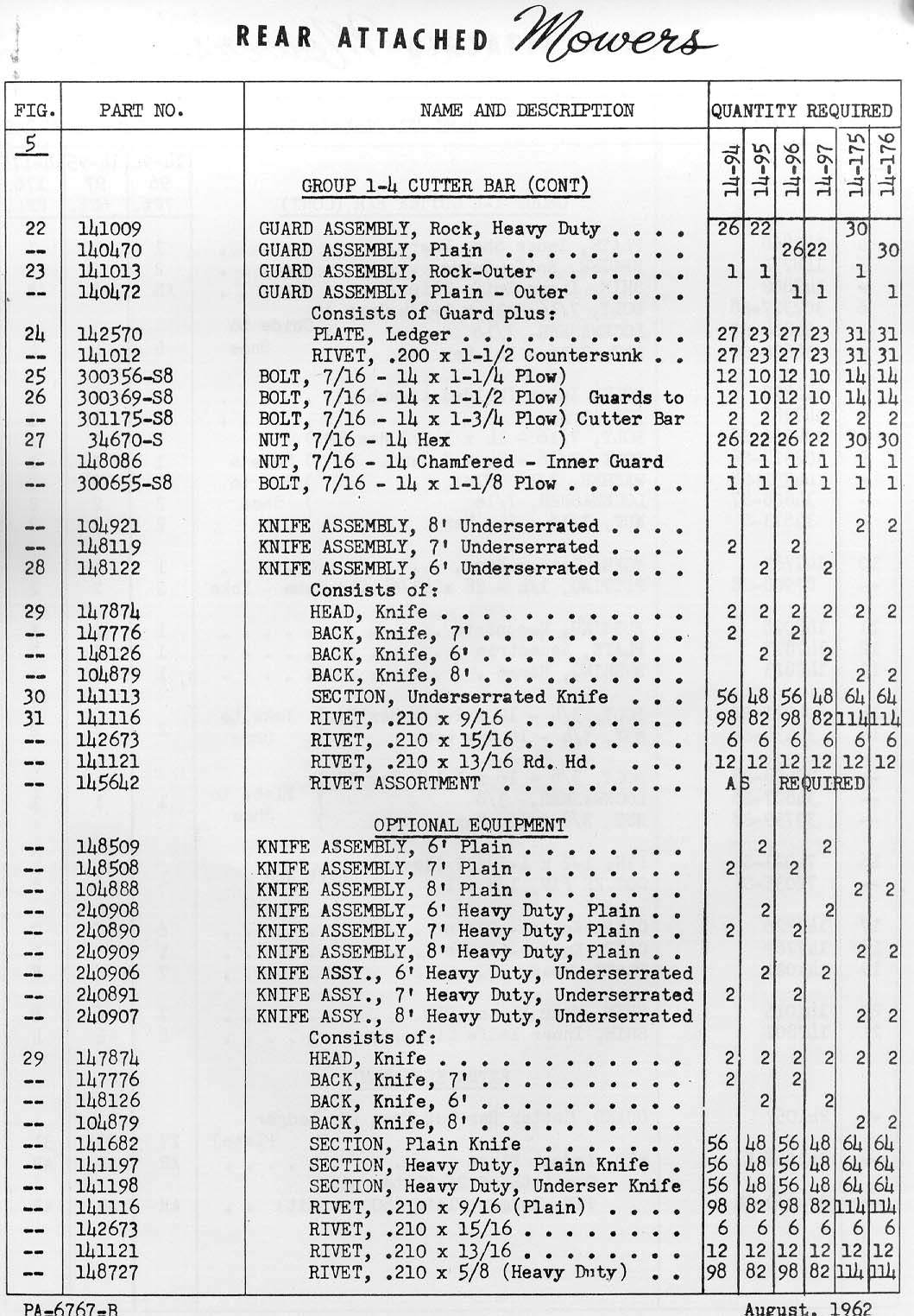

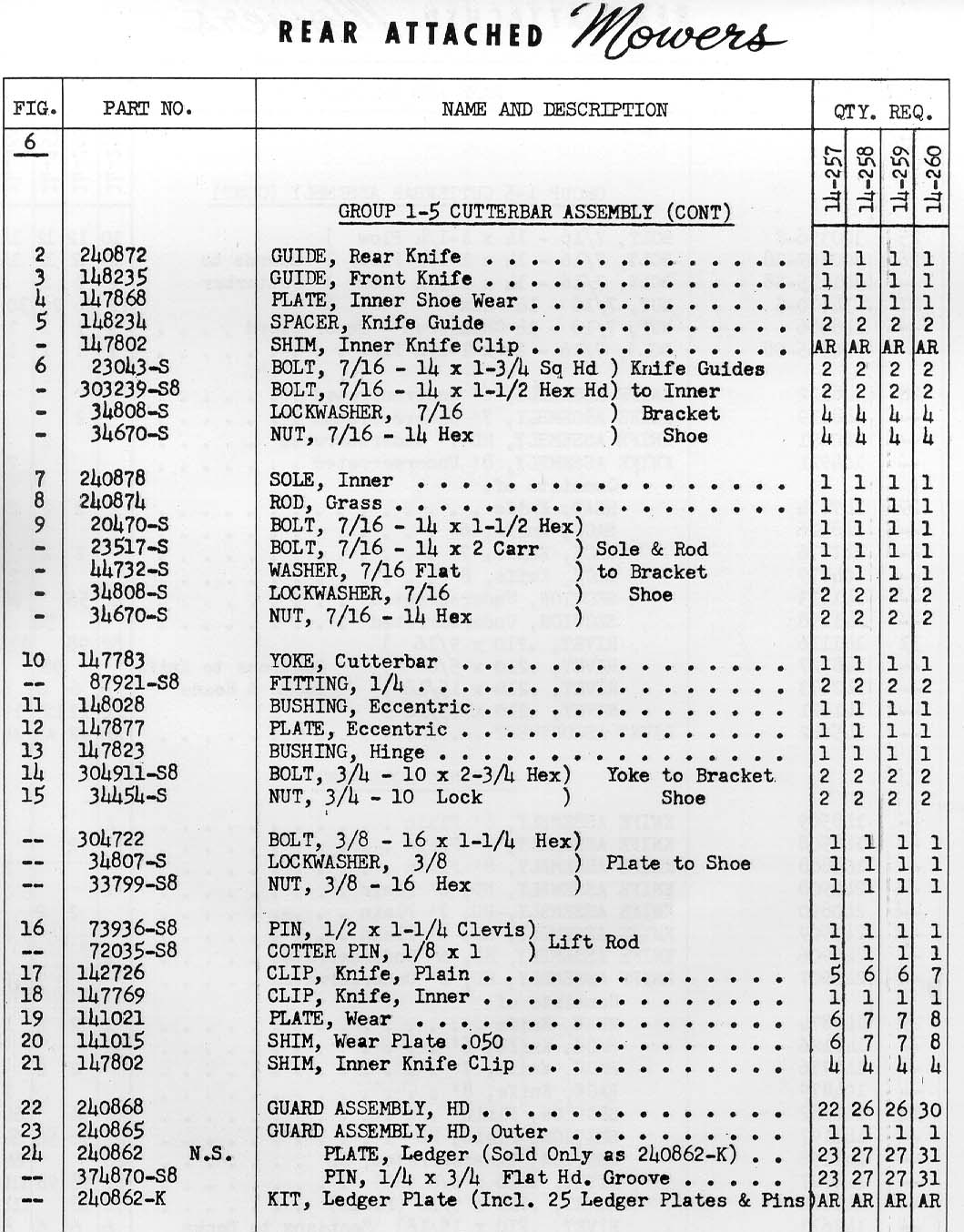

  • Cutter Bar Assembly (8 pages)

  • Ed Gooding (VA)    Posted 03-16-2005 at 11:29:08        [Reply] [Email]

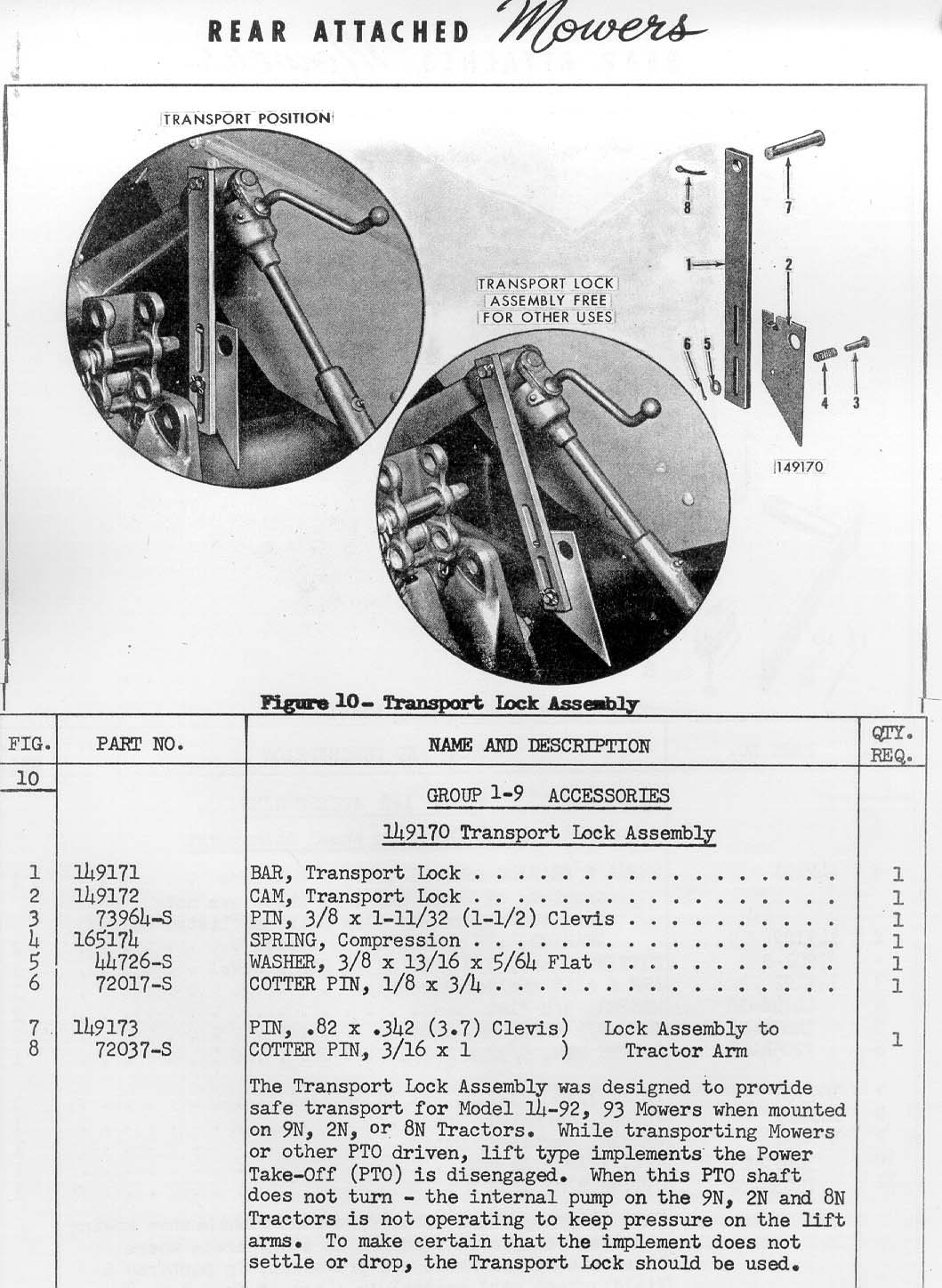

  • Kits & Accessories (5 pages)
