Subject: Oil pressure

[Back] [Return to Top of Forum]

Rick    Posted 03-08-2019 at 20:39:30 [URL] [DELETE]        [Reply] [Email]
  • Oil pressure
  • Trying to obtain oil pressure in my 8n and I am looking for advice. I have inserted oil in both plug on the front near the distributed as well as the oil pressure gauge tube. Filter us full. I have installed new pump and gears to include the entire pump housing. Got no pressure. I have removed the plug at the front and started the engine. Oil squirts everywhere out of the hole. Where is the problem. I have run this engine with gage off to bleed air in the line but no luck. This engine has been completely rebuilt. What did I miss.

    Thanks
    Rick

    Rustyal    Posted 03-09-2019 at 20:20:59 [URL] [DELETE]        [Reply] [No Email]
  • Re: Oil pressure
  • Try pumping oil into the junction block directly. Then reconnect the line.

    Rick    Posted 03-09-2019 at 21:36:38 [URL] [DELETE]        [Reply] [Email]
  • Re: Oil pressure
  • Gave up ion the insanity and Ripped it apart this afternoon. No galley plug in the front. Anyone know where to rear one is located.

    TheOldHokie    Posted 03-10-2019 at 17:57:51 [URL] [DELETE]        [Reply] [No Email]
  • Re: Oil pressure

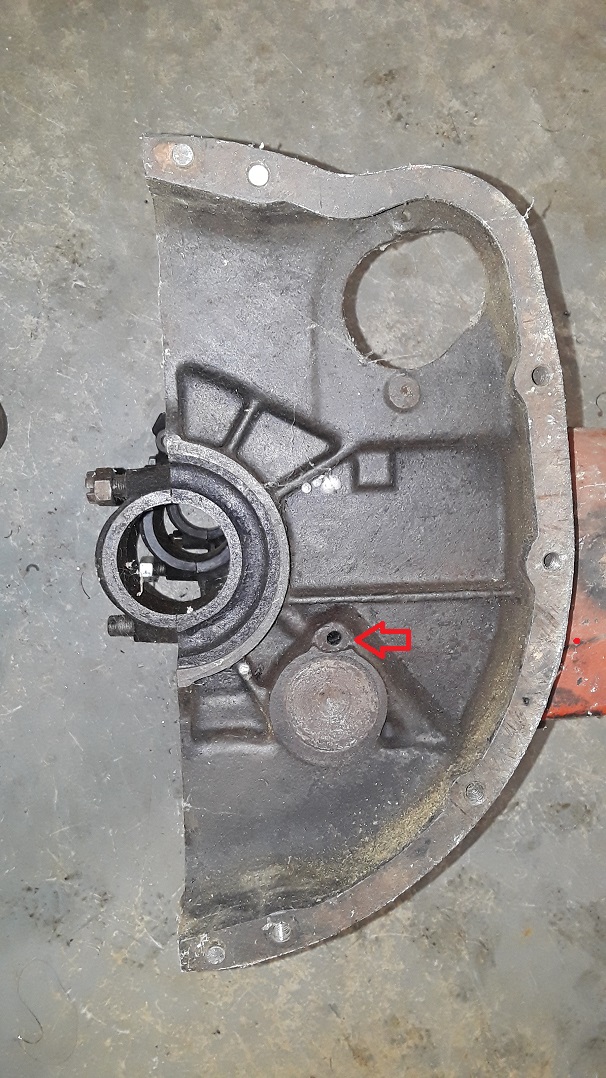

  • Took a picture of the rear plug location for you. This one is also MIA.

    TOH

    TheOldHokie    Posted 03-10-2019 at 07:29:12 [URL] [DELETE]        [Reply] [No Email]
  • Re: Oil pressure
  • Bummer but at least you have identified the problem. The other plug is at the back end of that same pipe.

    TOH

    Rick    Posted 03-09-2019 at 09:07:18 [URL] [DELETE]        [Reply] [Email]
  • Re: Oil pressure
  • I will check the galley plugs. All lines are new as well as gages. I think the machine shop must have pulled the and did not re-install or did not return to me for install. I think I only have the one in the front near the cam. The serial engine for this unit is just below 40k(if I remember correctly).

    Bruce(OR)    Posted 03-09-2019 at 07:06:46 [URL] [DELETE]        [Reply] [No Email]
  • Re: Oil pressure
  • bad gauge/ crimped line/plugged line/ does line flow air?

    Rick    Posted 03-09-2019 at 10:10:43 [URL] [DELETE]        [Reply] [Email]
  • Oil pressure
  • Some comes out of the oil pressure line. Makes gage quiver

    TheOldHokie    Posted 03-09-2019 at 02:19:25 [URL] [DELETE]        [Reply] [No Email]
  • Re: Oil pressure
  • Pressure relief valve spring and poppet installed behind plug on front of engine?

    Internal plugs at ends of main oil galley in the block in place?

    TOH
