Subject: 860 clutch pics

[Back] [Return to Top of Forum]

lonestarjeff    Posted 09-01-2019 at 16:16:48 [URL] [DELETE]        [Reply] [Email]
  • 860 clutch pics
  • I seem to have an adjustment issue...

    Ultradog MN    Posted 09-03-2019 at 01:22:12 [URL] [DELETE]        [Reply] [No Email]
  • Re: 860 clutch pics

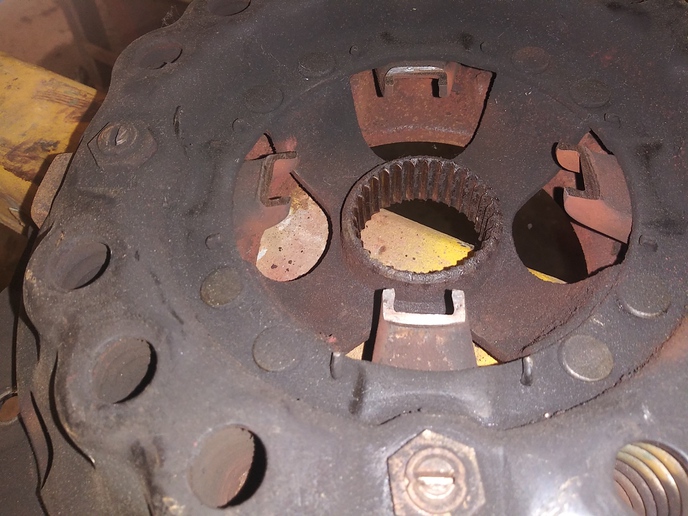

  • I've got about the same thing here Jeff. Throw out bearing froze up. I bought this tractor not running. It wore most of the fingers off.

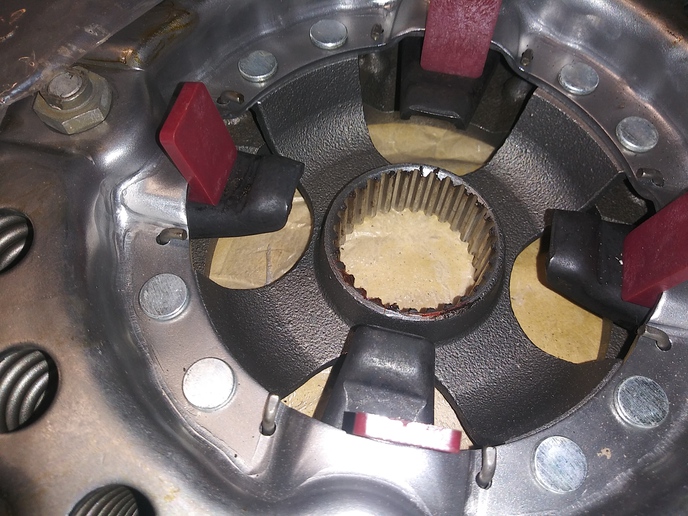

    Here's the new one for comparison.

    lonestarjeff    Posted 09-03-2019 at 15:27:02 [URL] [DELETE]        [Reply] [Email]
  • Re: 860 clutch pics
  • Definitely looks familiar. Don't know if I can find any donor parts, but if I do I'll see if I can save the old clutch & use it(assuming the plates have something left).

    lonestarjeff    Posted 09-02-2019 at 19:46:18 [URL] [DELETE]        [Reply] [Email]
  • more pics
  • Walt/Tx    Posted 09-02-2019 at 09:29:14 [URL] [DELETE]        [Reply] [No Email]
  • Re: 860 clutch pics
  • That had to be making lots of noise! What do you plan to do?
    Walt

    lonestarjeff    Posted 09-03-2019 at 15:30:56 [URL] [DELETE]        [Reply] [Email]
  • Re: 860 clutch pics
  • On second thought, I'm at least going to look at finding donor parts to save the old set. Not sure how much wear is actually on the disks, too bad I can't ask Buster when he replaced it(or if he did).

    lonestarjeff    Posted 09-02-2019 at 15:25:23 [URL] [DELETE]        [Reply] [Email]
  • Re: 860 clutch pics
  • Surprisingly very little noise, but I could hear what is clear now....metal on metal. I will put a new clutch set in it & new release bearing for sure. The bearing came off the carrier pretty easily, so I may be replacing it too. :-(

    r Geiger    Posted 09-01-2019 at 17:18:19 [URL] [DELETE]        [Reply] [No Email]
  • Re: 860 clutch pics
  • Seems to me you have a throw out bearing problem.

    WayneIA    Posted 09-02-2019 at 07:59:38 [URL] [DELETE]        [Reply] [Email]
  • Re: 860 clutch pics
  • The issue is now bigger than just the throw-out bearing!

    R Geiger    Posted 09-02-2019 at 11:54:10 [URL] [DELETE]        [Reply] [No Email]
  • Re: 860 clutch pics
  • Very true, but I would bet it was caused by a frozen throw out bearing.

    lonestarjeff    Posted 09-02-2019 at 19:18:14 [URL] [DELETE]        [Reply] [Email]
  • Re: 860 clutch pics
  • It was frozen tight. Ground through the fingers & spun on the carrier.

    Ozlander    Posted 09-01-2019 at 22:51:59 [URL] [DELETE]        [Reply] [No Email]
  • Re: 860 clutch pics
  • 10-4 on that.
