Subject: 14-72 Side Delivery Rack - Temporary Parts List

[Back] [Return to Top of Forum]

Ed Gooding (VA)    Posted 03-26-2006 at 11:35:36 [URL]        [Reply] [Email]
  • 14-72 Side Delivery Rack - Temporary Parts List
  • This is an April 1955 dealer Temporary Parts List for the Ford 14-72 Mounted Side Delivery Rake:

    This is another manual donated to the NTC from Jim Webb's collection of tractor info. Thanks again, Jim!

    Please review our tutorial in our How-To's section (see the red menu bar at the top of the screen) on how to best capture the following pages to your PC, instead of trying to print them with your browser.
    Note: this technique will work with any image on any web site.

    Enjoy................Ed

    Ed Gooding (VA)    Posted 03-26-2006 at 11:36:28 [URL]        [Reply] [Email]
  • Assembled Unit and Frame Diagram (2 pages)

  • Ed Gooding (VA)    Posted 03-26-2006 at 11:37:39 [URL]        [Reply] [Email]

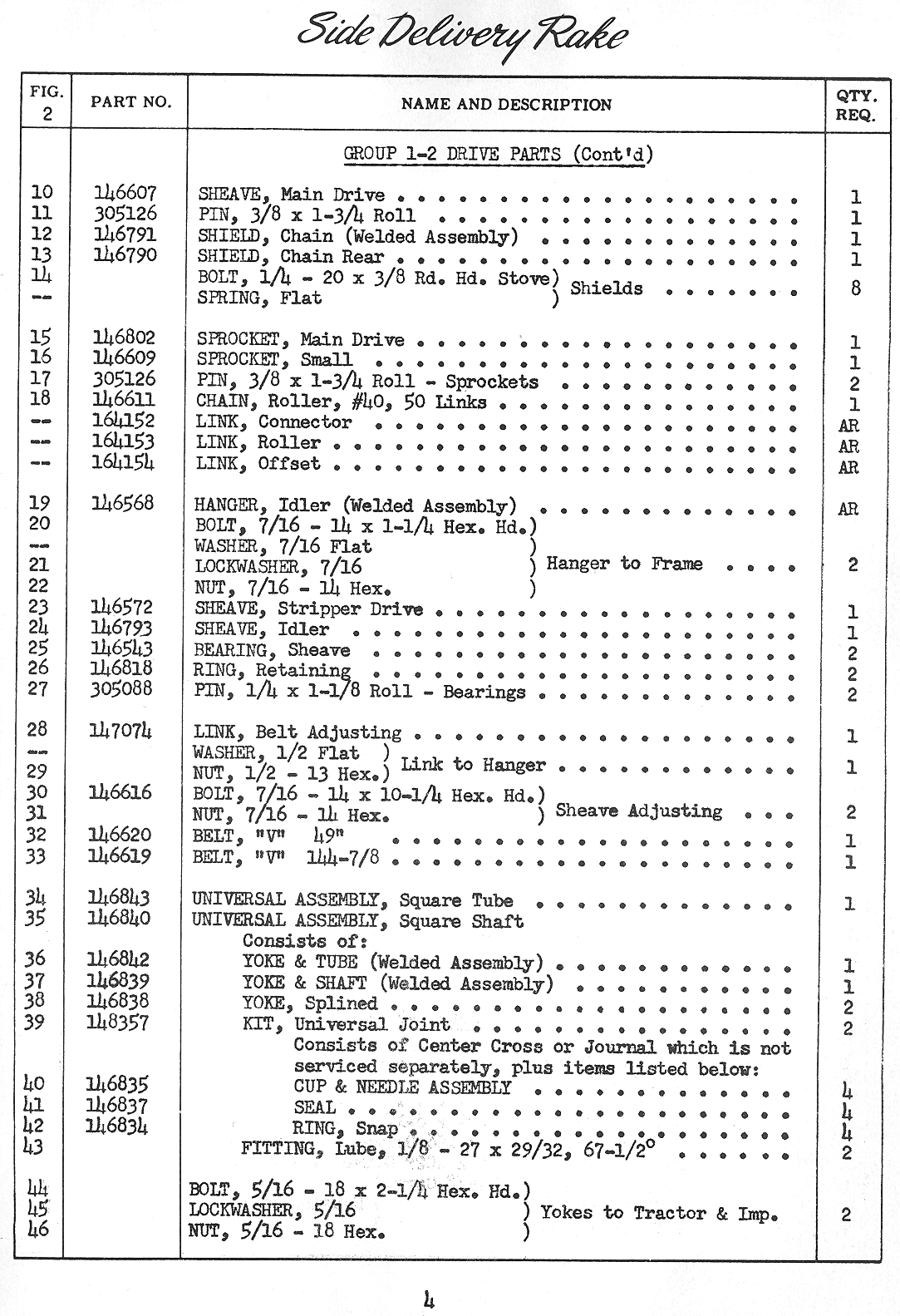

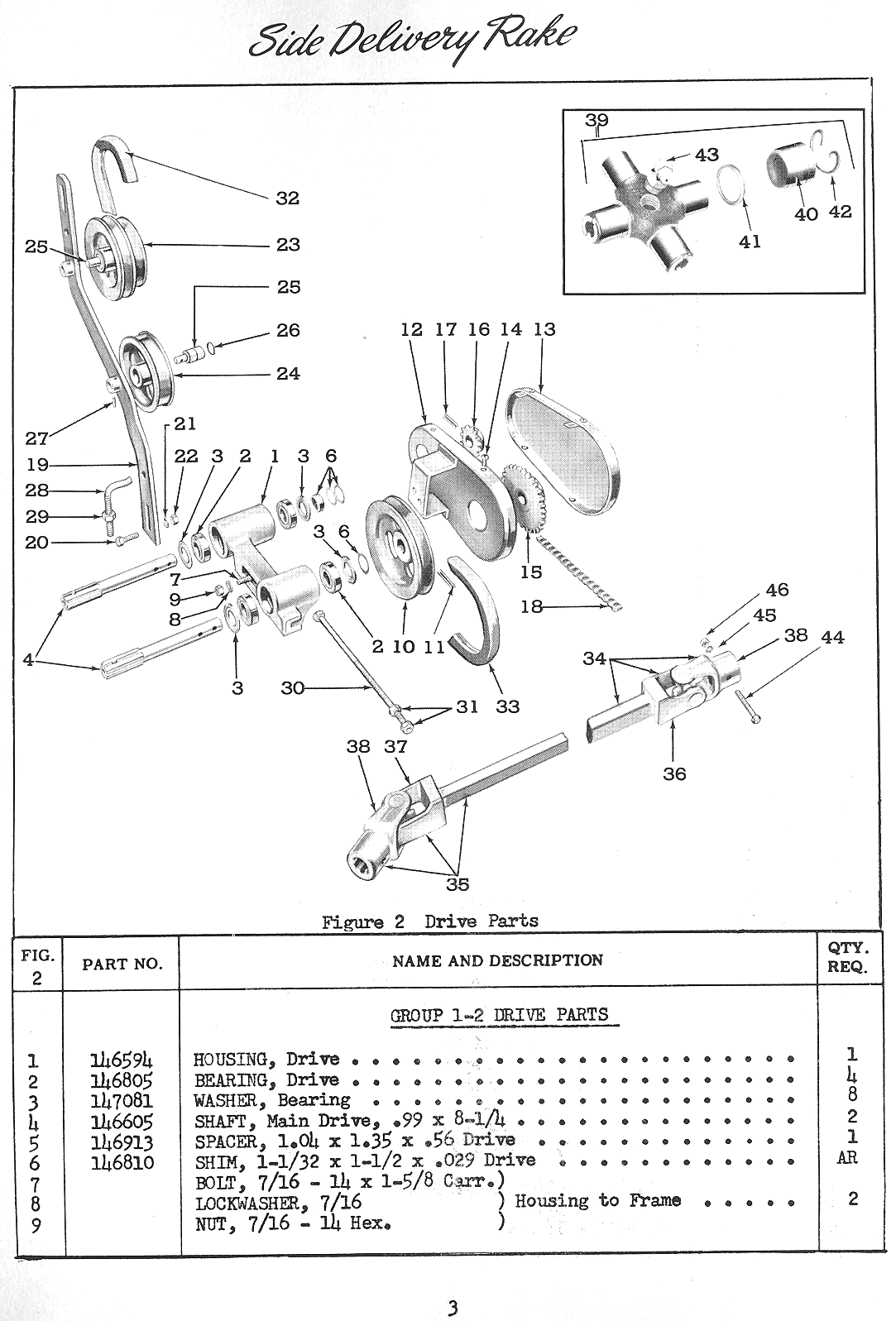

  • Drive Parts (2 pages)

  • Ed Gooding (VA)    Posted 03-26-2006 at 11:44:01 [URL]        [Reply] [Email]

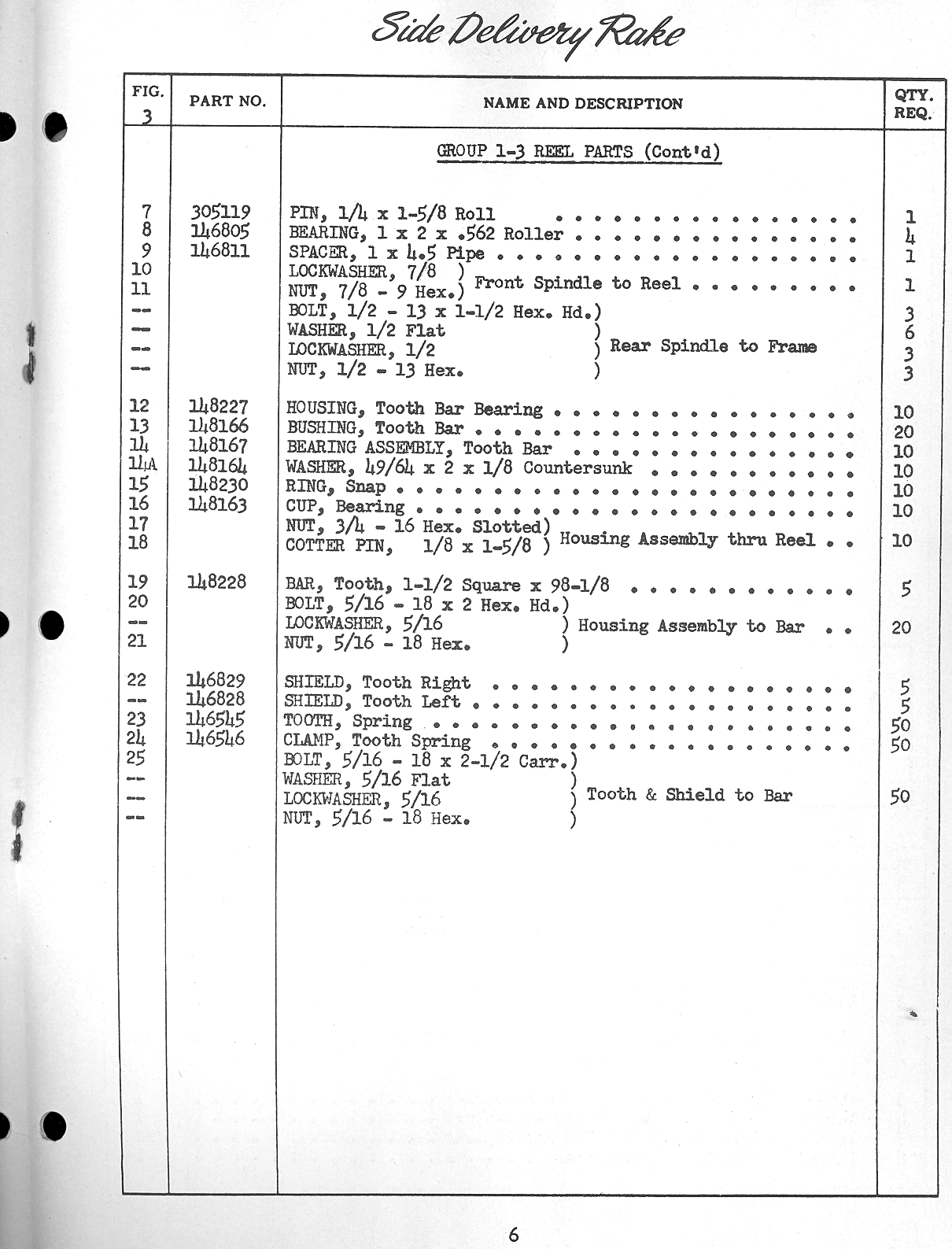

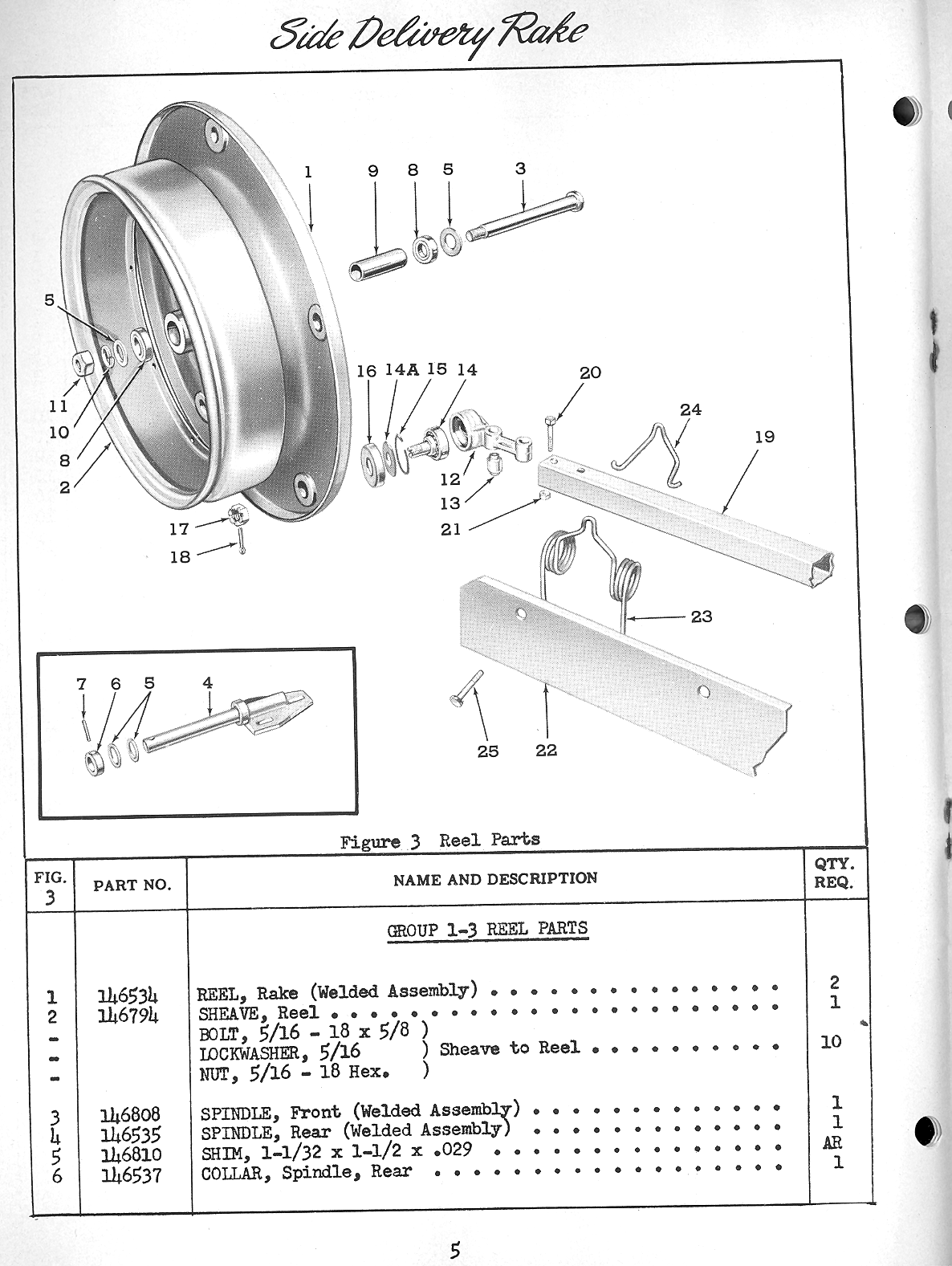

  • Reel Parts (2 pages)

  • Ed Gooding (VA)    Posted 03-26-2006 at 11:44:41 [URL]        [Reply] [Email]

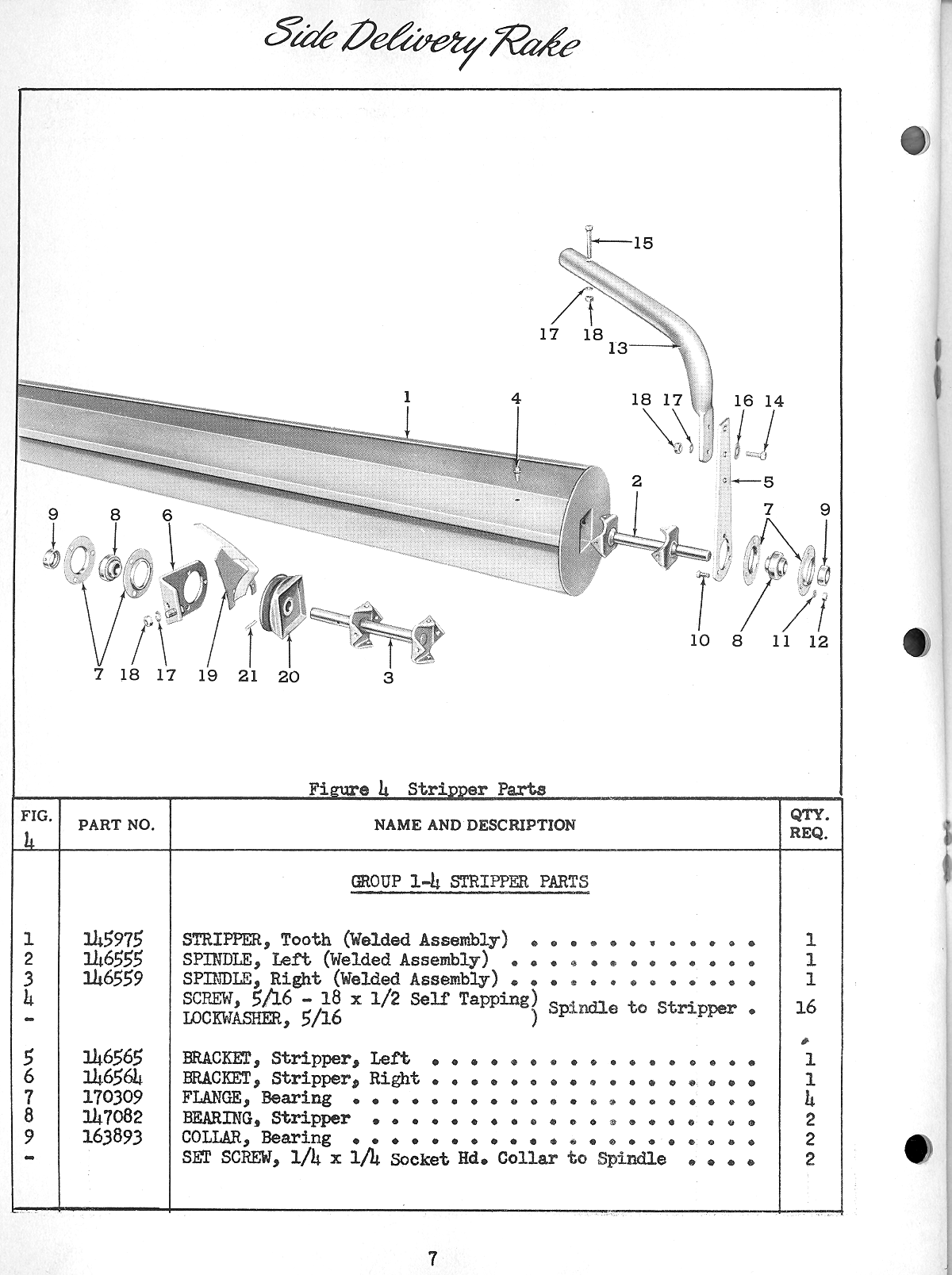

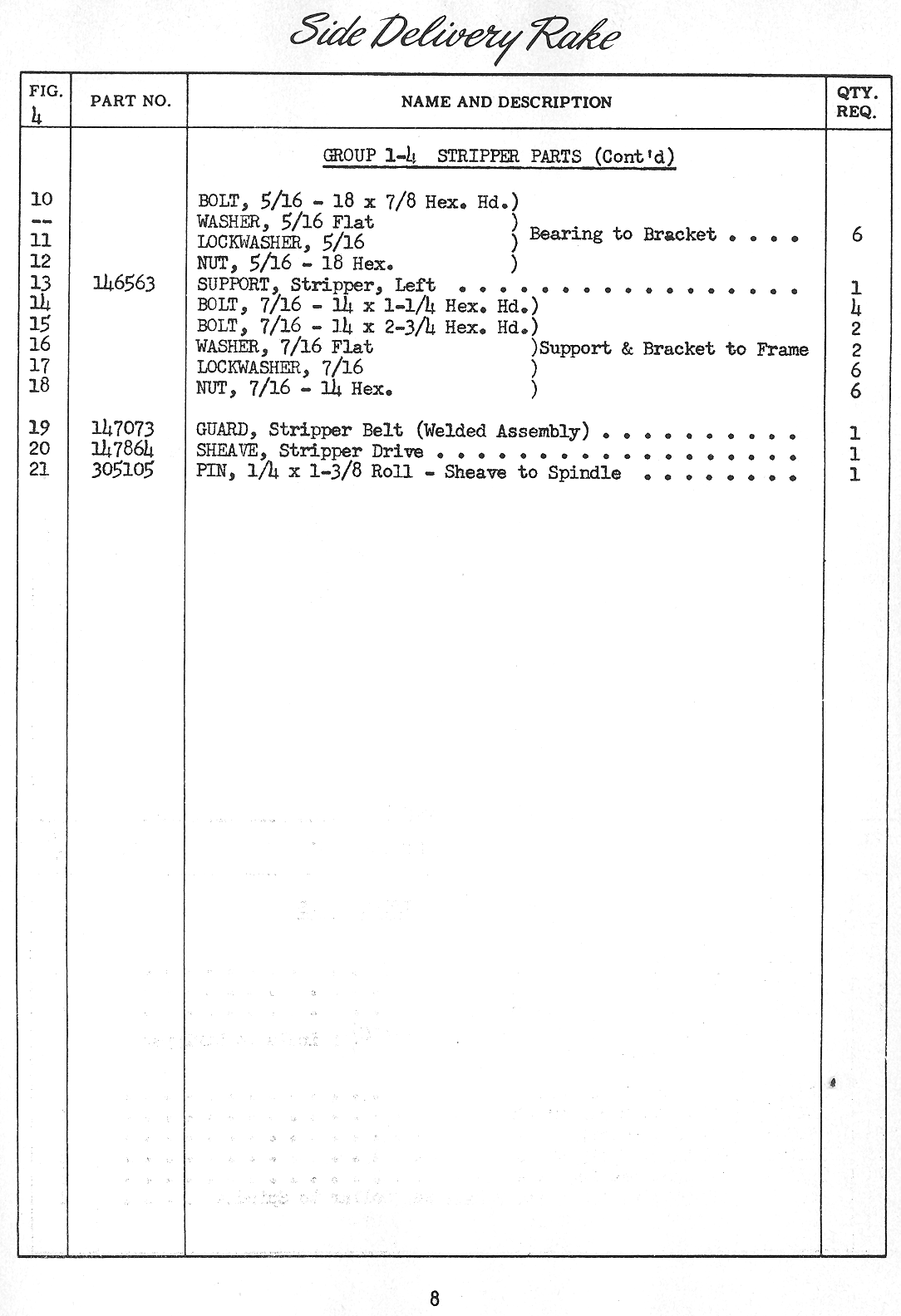

  • Stripper Parts (2 pages)

  • Ed Gooding (VA)    Posted 03-26-2006 at 11:45:35 [URL]        [Reply] [Email]

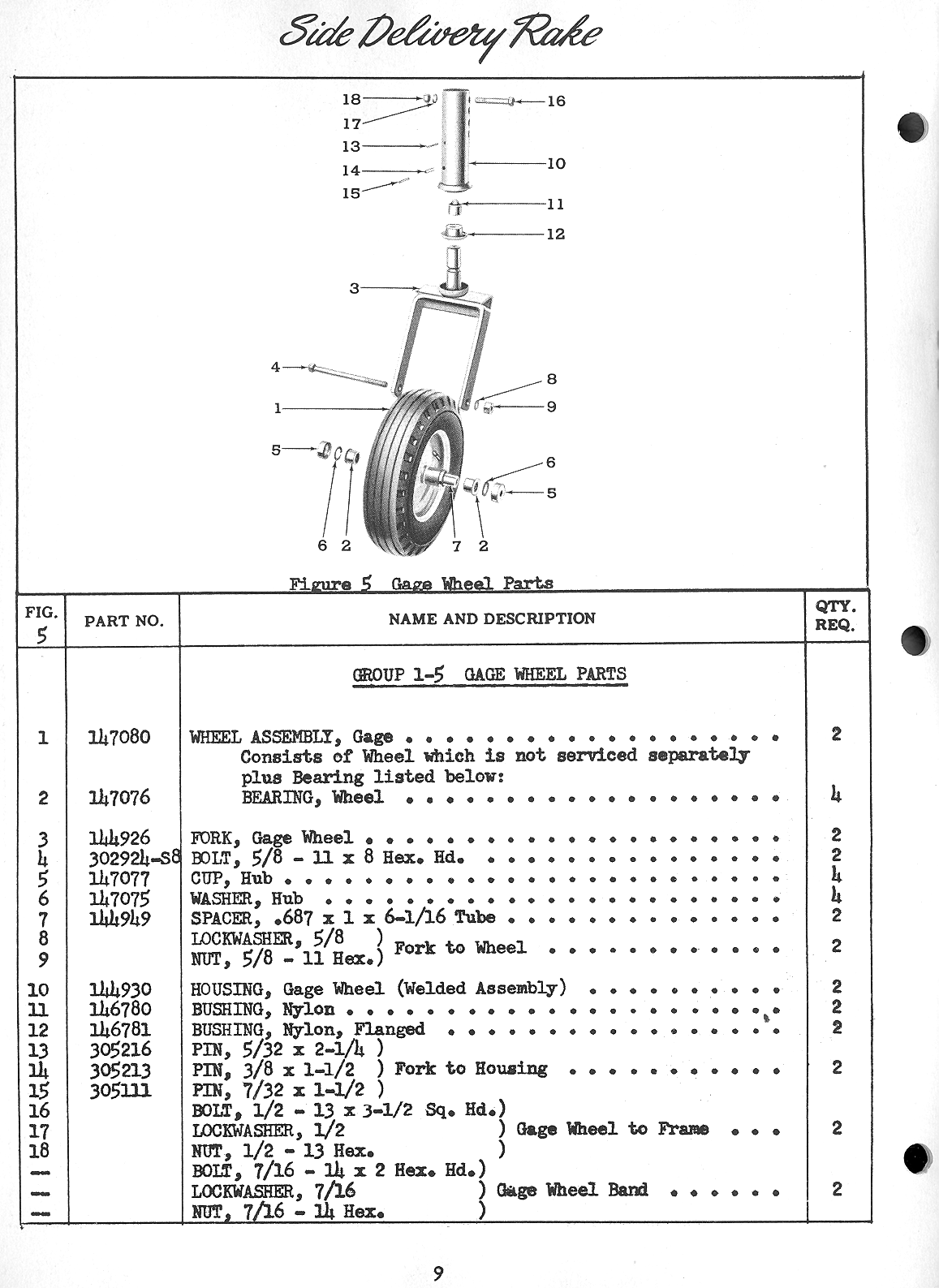

  • Gage Wheel and Numerical Index (2 pages)
