Posted by Ed Gooding (VA) on May 03, 2010 at 08:29:05 [URL] [DELETE] :

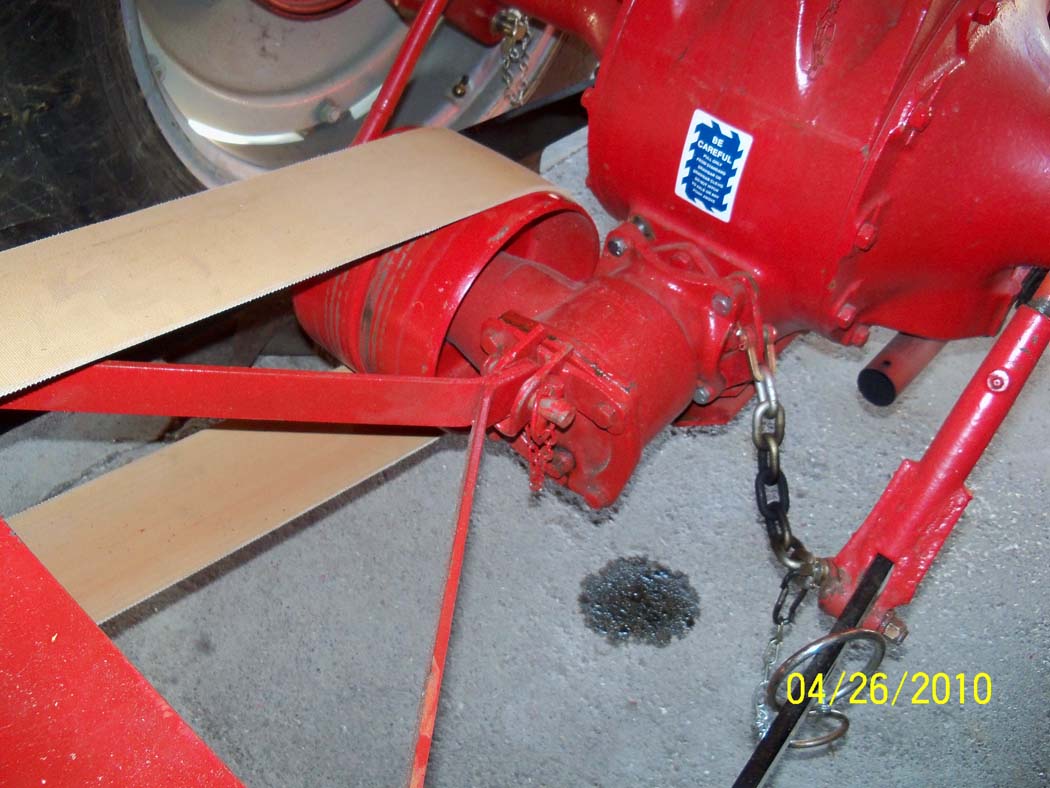

Dollar Bill Griffin sent me these pics and dimensional drawings for those of you who might need to make the Y-shaped toplink bracket and pulley bracket for the Dearborn 22-44 cordwood saw. Here's a close-up of it in use:

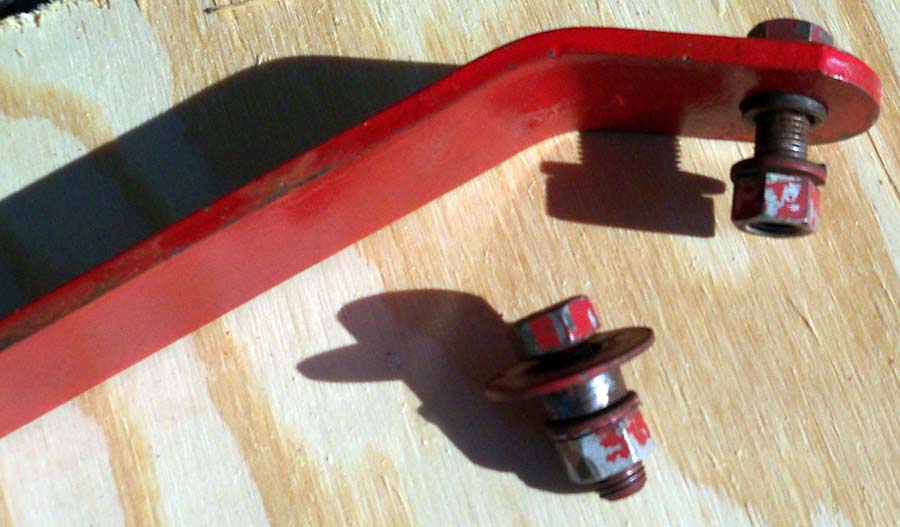

This is one end that attaches to the saw frame:

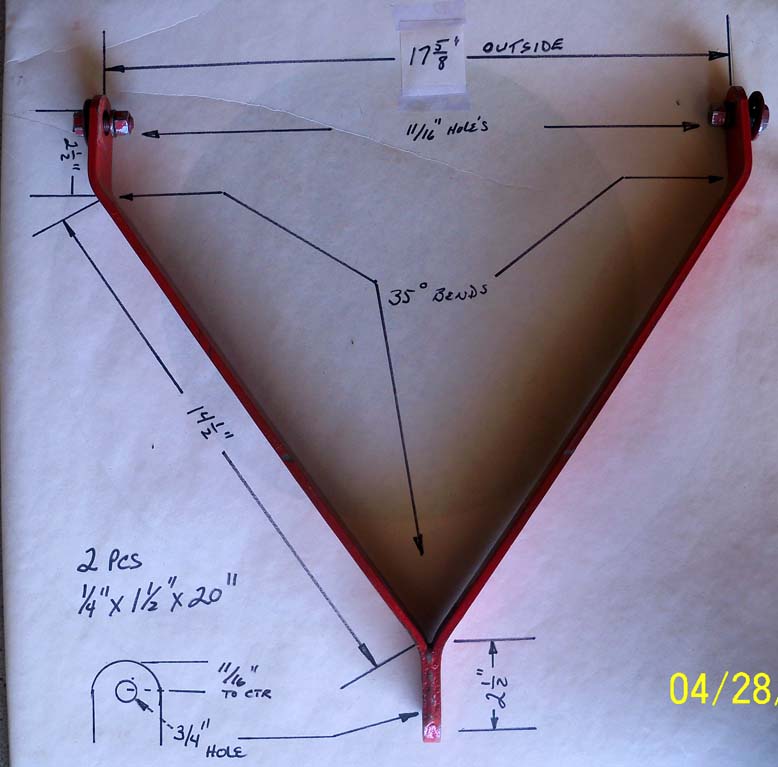

Here's a dimensional drawing for it:

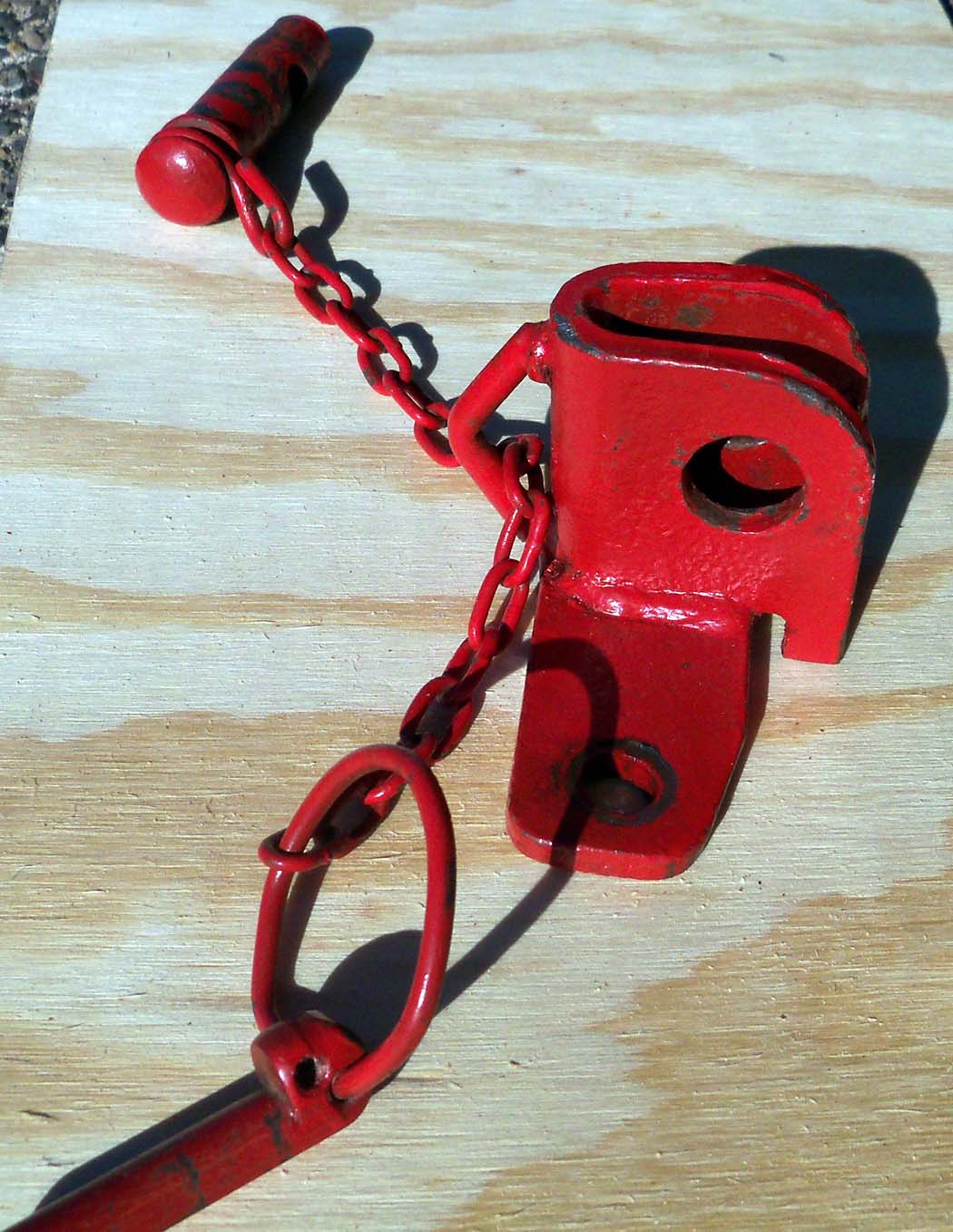

Here's the little bracket that attaches to the pulley housing:

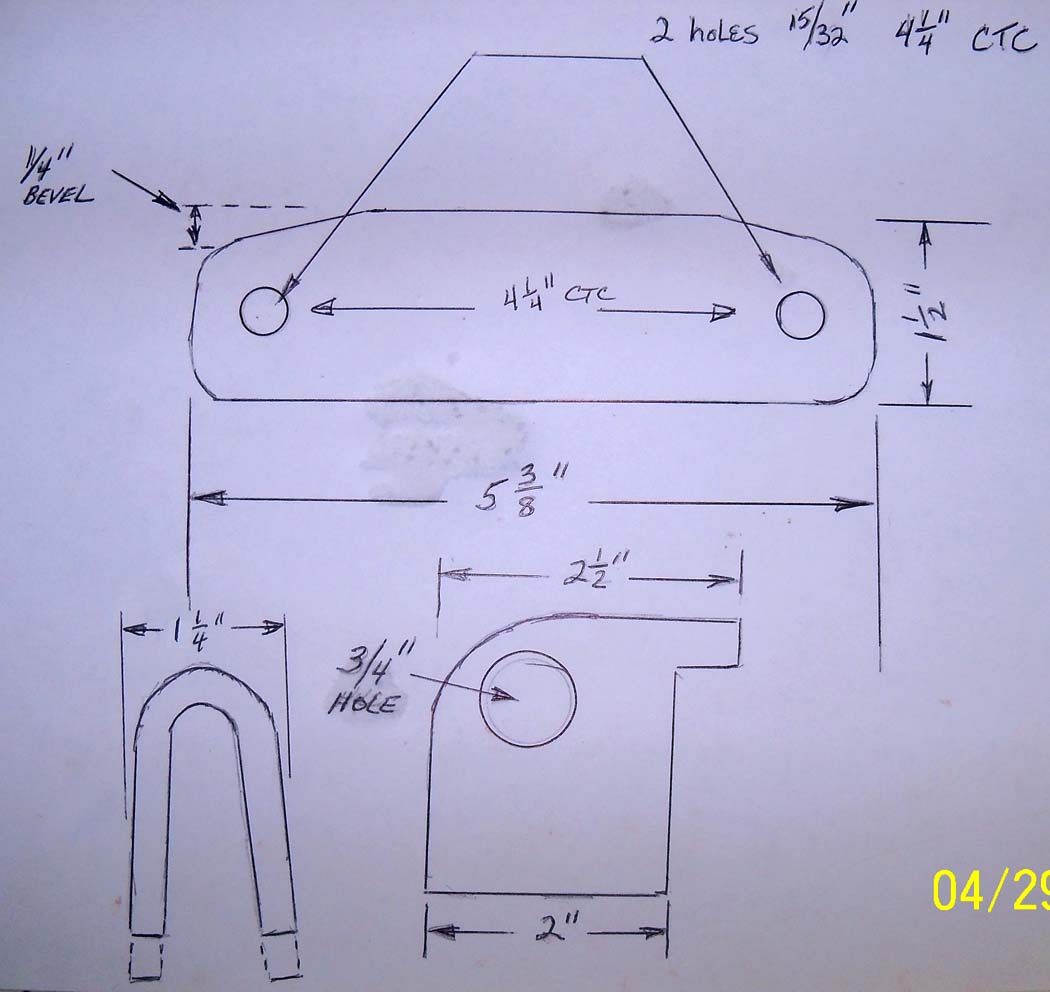

Here's a drawing for it:

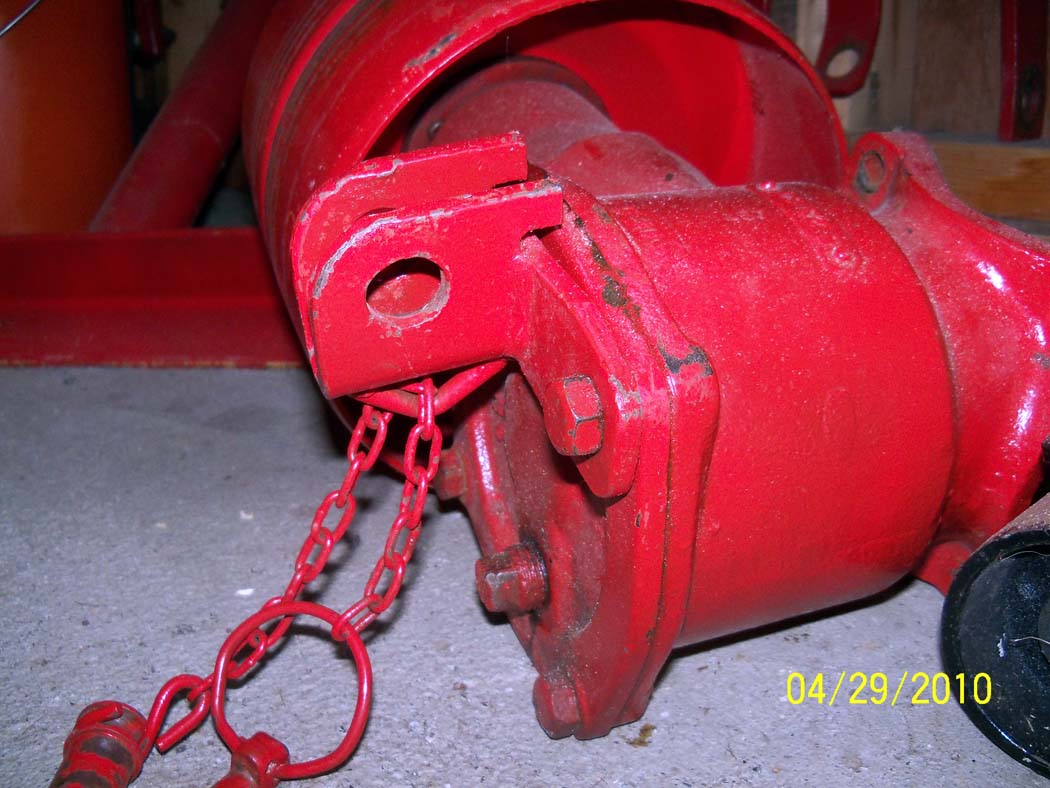

Here it is attached to the pulley housing:

Hope this helps............Ed
'52 8N475798
